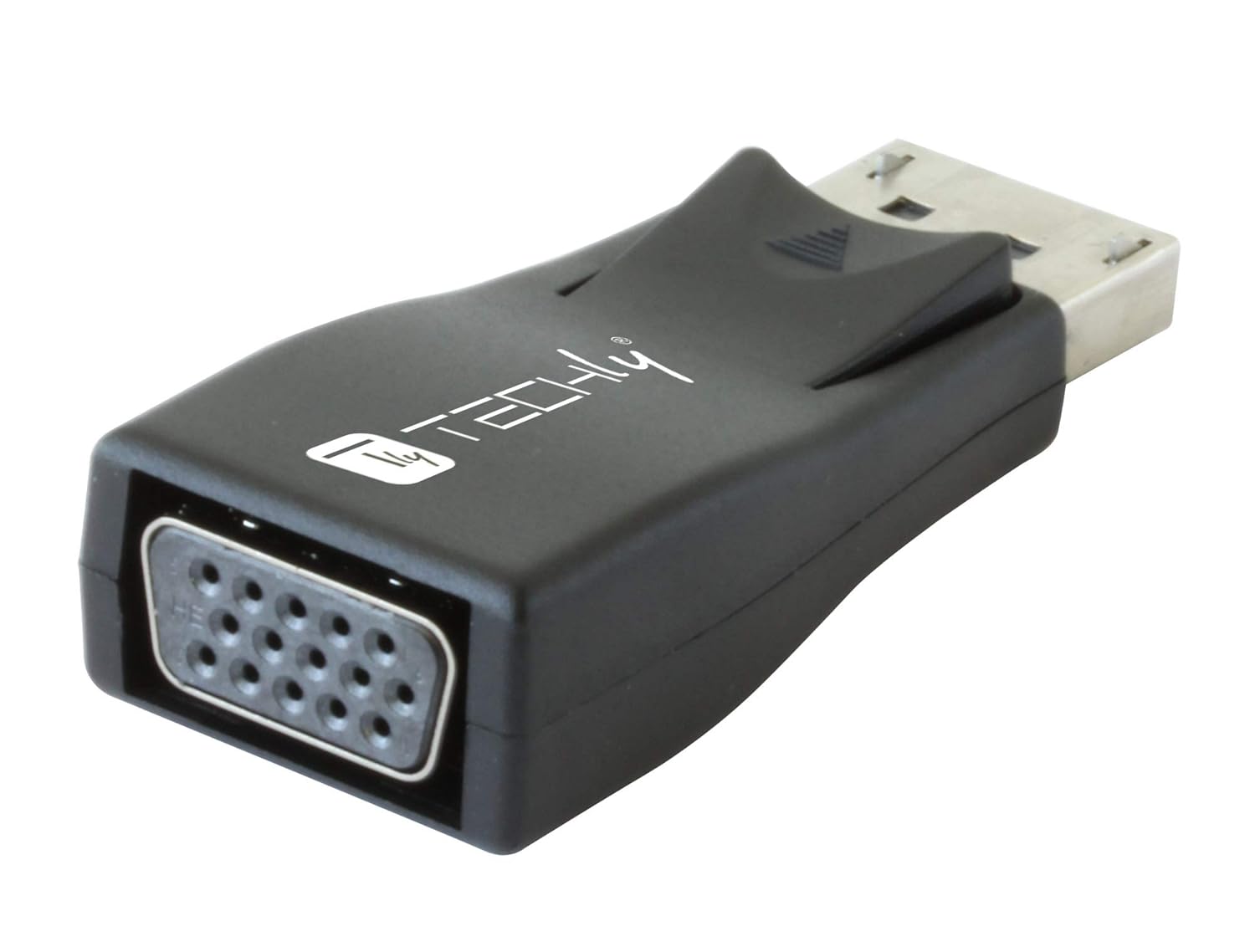

Techly DisplayPort V.1.2 M to VGA F Adapter

DisplayPort to VGA converter to interface the next generation of DisplayPort-equipped PCs and notebooks with traditional VGA monitors such as CRT, LCD and projectors Technical specification Compatible with VESA DisplayPort 1.2 standard with 1.1a backward compatibility Compatible with VESA and DP v1.3 standard 2 high-speed differential input lanes with configurable speed: 2.7Gbps or 1.62Gbps Supports Spread Spectrum (SSC) Supports resolution with pixel rates up to 180MHz Supports resolutions up to WUXGA (1920x1200@60Hz@60Hz, reduced blanking, 24bpp) VESA VSIS V1R2 compliant VGA output jitter clock specification Low power standby mode with automatic monitor connection and disconnect DDC speed control for use with longer VGA cables EDID passing from PC source to display Wide spectrum of diffusion (de-spreading) for EMI reduction Low power consumption operation - 485mW active, 12mW in standby mode Display resolution: 1920x1200(WUXGA-R), 60Hz, 8bpc: 154MHz, 1920x1080P, 60Hz, 10bpc: 144MHz Vertical frequency range: 50/60Hz Video bandwidth: 162MHz mechanical Colour: Black Connections DisplayPort M for connection to DisplayPort source VGA F for connection to monitor with VGA M/M cable (If you use DisplayPort F/F coupler, please use a DisplayPort cable with 20 pins connected) Dimensions Dimensions (W x D x H): 54 x 23 x 12 mm Box contents:

• DisplayPort to VGA converter to interface the next generation of DisplayPort PCs and notebooks with traditional VGA monitors such as CRT, LCD and projectors
• Compatible with VESA and DP v1.3 standard
• Supports resolution with up to 180MHz pixel rate
• Supports resolutions up to WUXGA (1920x1200@60Hz@60Hz, reduced blanking, 24bpp)
• Compatible with standard VESA DisplayPort 1.2 with 1.1a backward compatibility
